| SKU: | DAQ973A |
| Brand: | Keysight |
Get the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 8 plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented, self-guiding menus, or a web browser.
Advanced 6½ digit internal DMM with improved accuracy and faster measurement speed
Ability to measure very low current ranges (1 μA DC and 100 μA AC) and higher resistance range (1000 MΩ)
New auto-calibration that compensates for internal drifts caused by time and temperature changes
3497XA compatible, program and configuration
PLUS
All modules have been updated to have improved switching speeds and accuracies

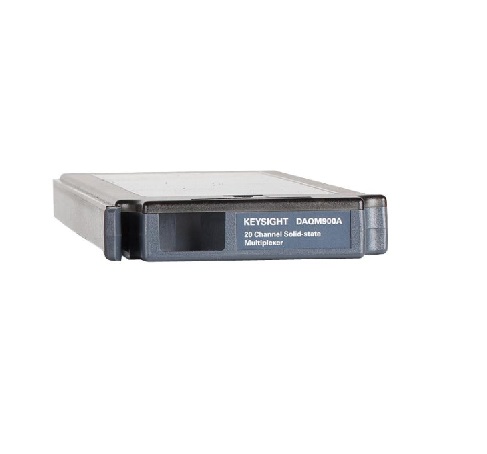

NEW DAQM900A solid state multiplexer with scan rate speed of up to 450 channels/sec
Powered by Froala Editor
- 3-slot mainframe with USB and LAN
- 6 1/2-digit (22-bit) internal DMM, scanning up to 450 channels per second with new solid-state multiplexer module
- 8 switch and control plug-in modules to choose from
- Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
- 100k readings of non-volatile memory holds data when power is removed
- Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
- A BenchVue software license (BV0006B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
